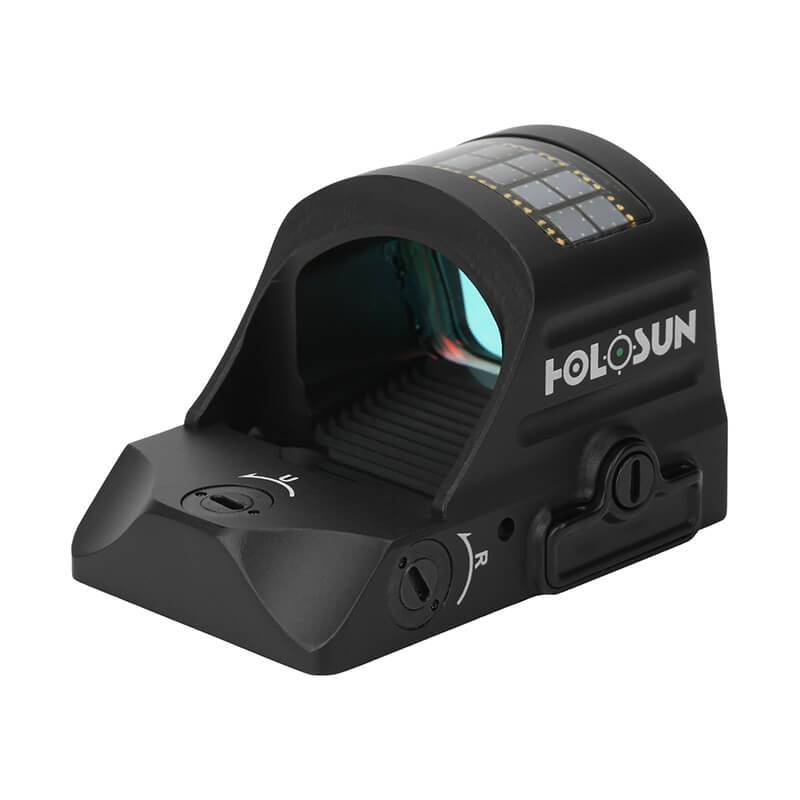

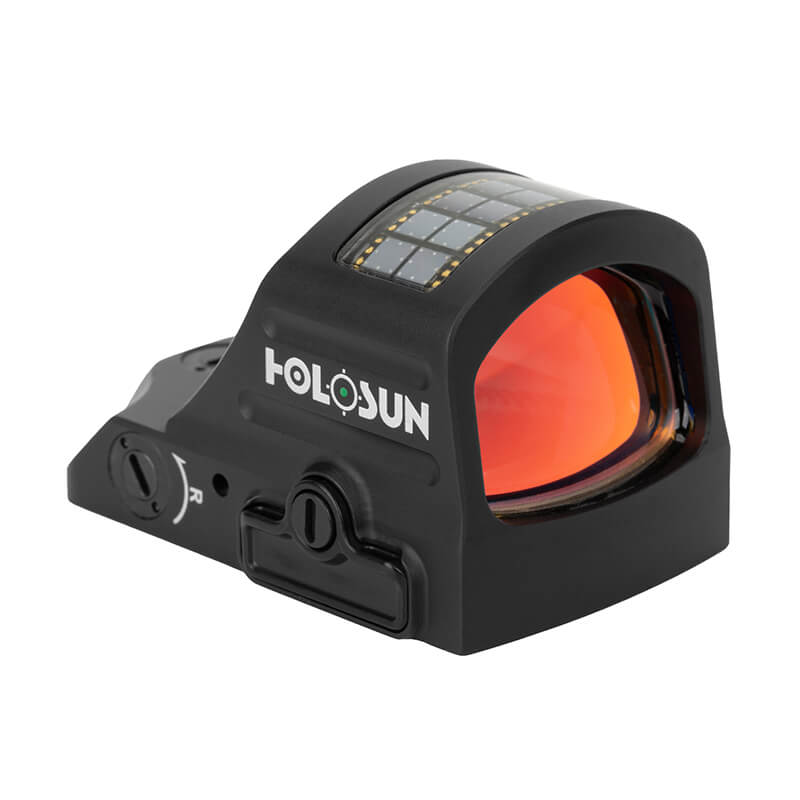

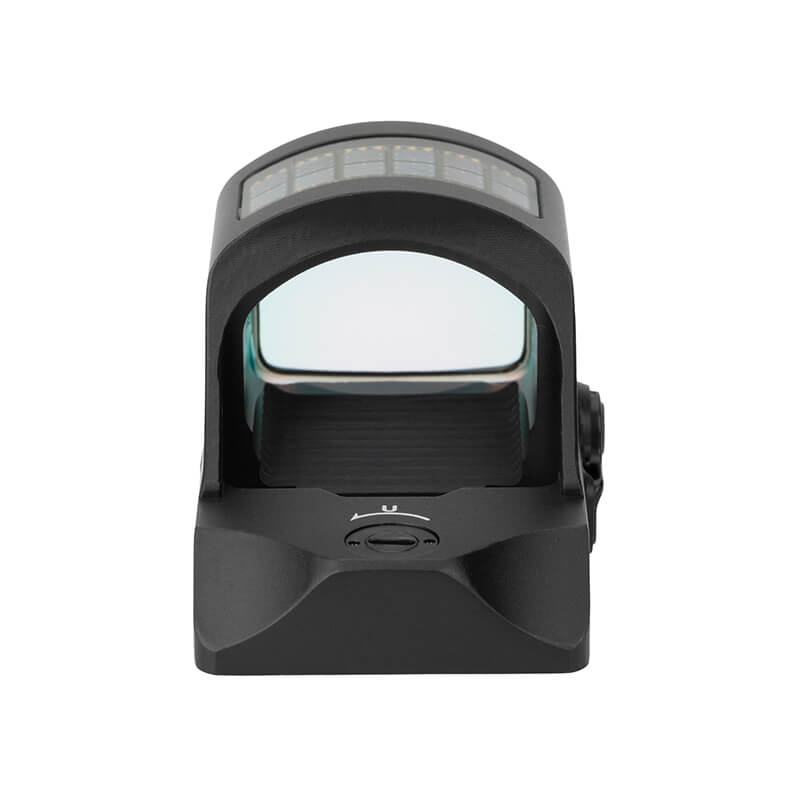

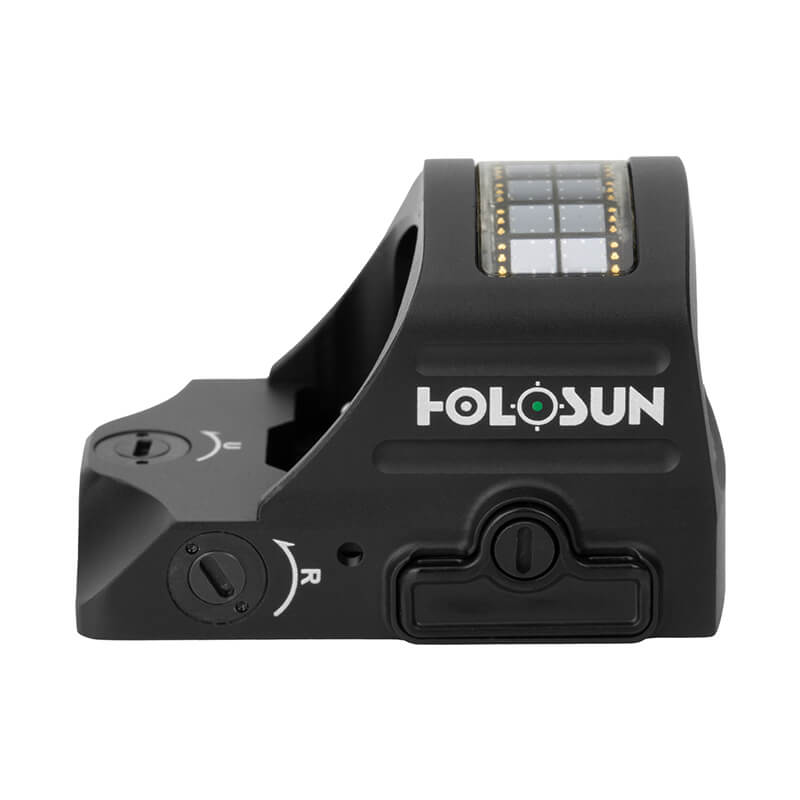

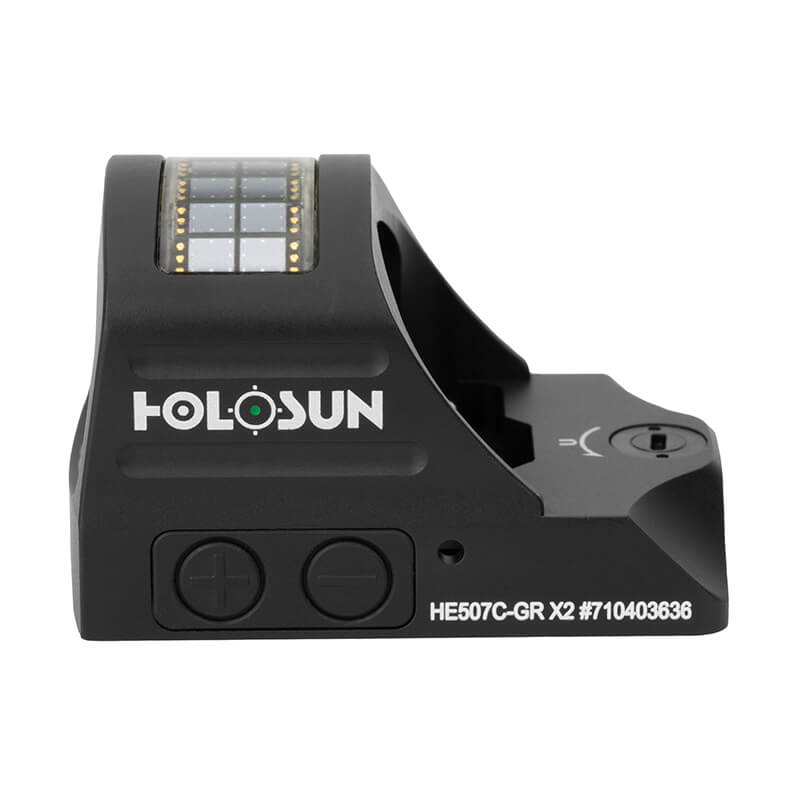

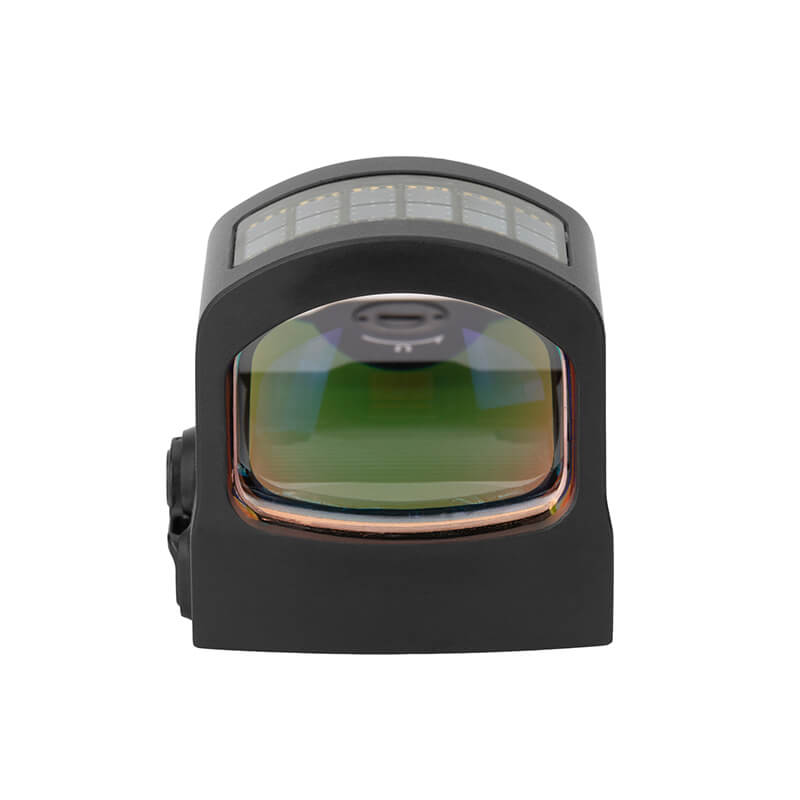

Holosun 507C X2 [green]

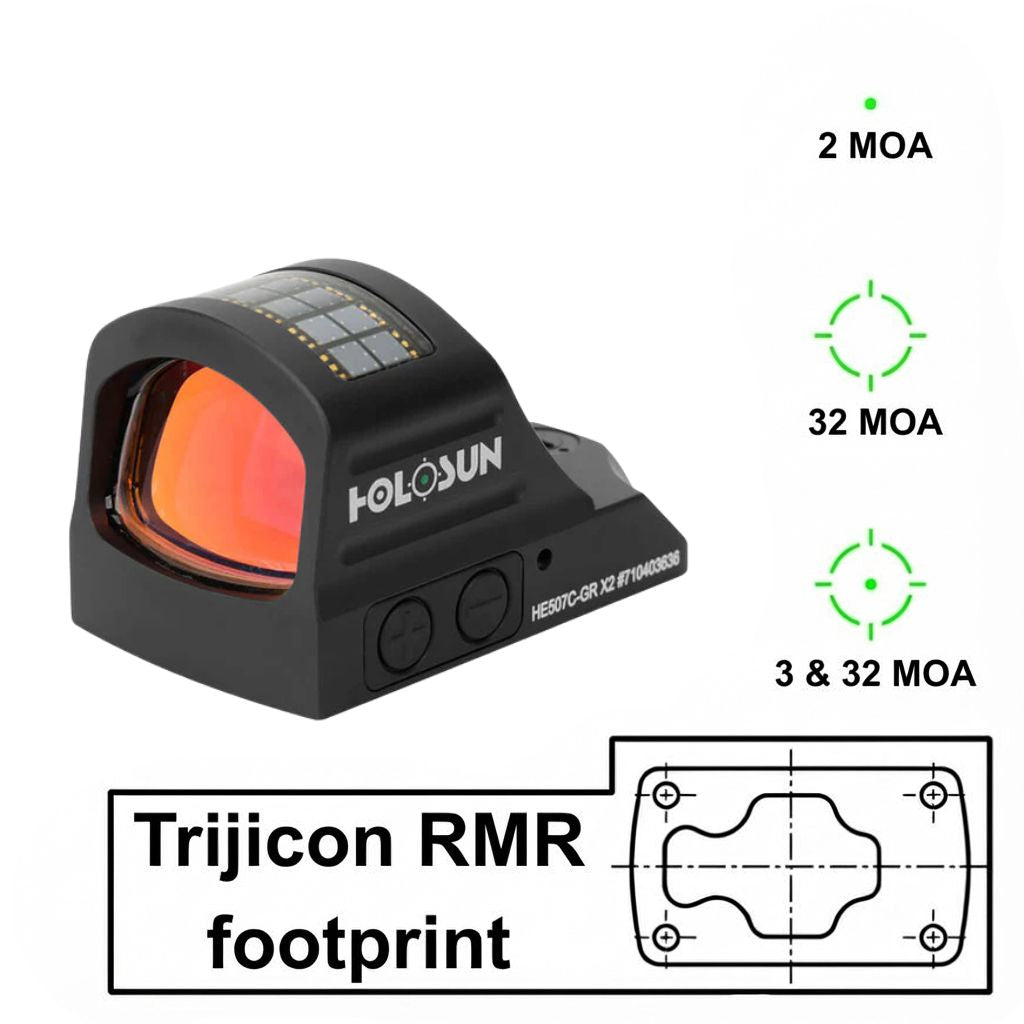

This red dot uses the Trijicon RMR footprint standard.

Essential info

• Footprint standard: Trijicon RMR footprint standard
• Reticle: 2 MOA dot & 32 MOA circle [green]
• Window size [height x width]: 16.0 x 23.1 mm [0.63 x 0.91"]

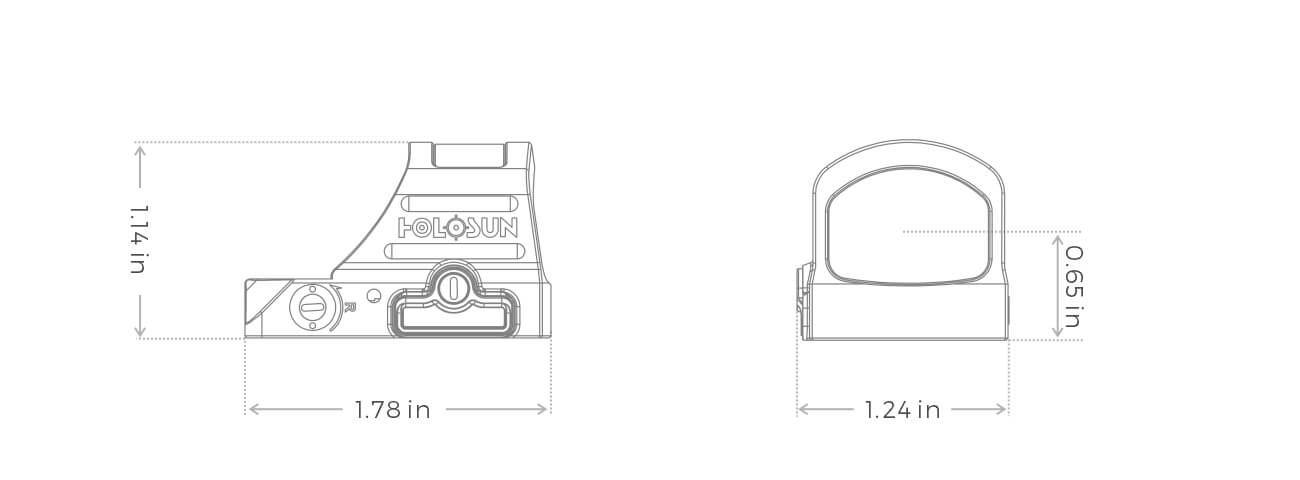

• Total dimensions [length x width x height]: 45.2 x 29.2 x 29.2 mm [1.78 x 1.15 x 1.15"]

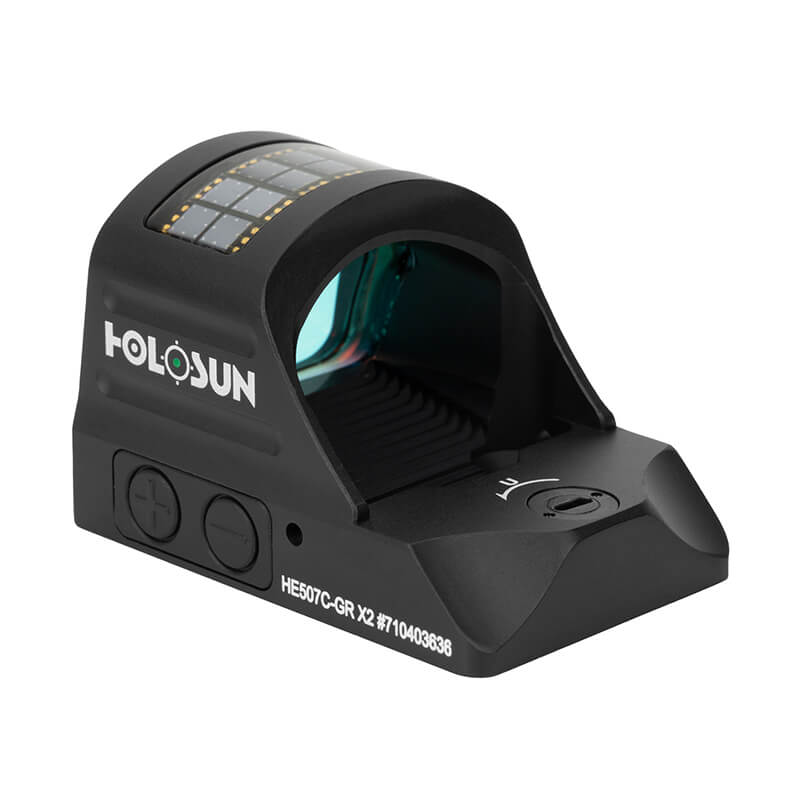

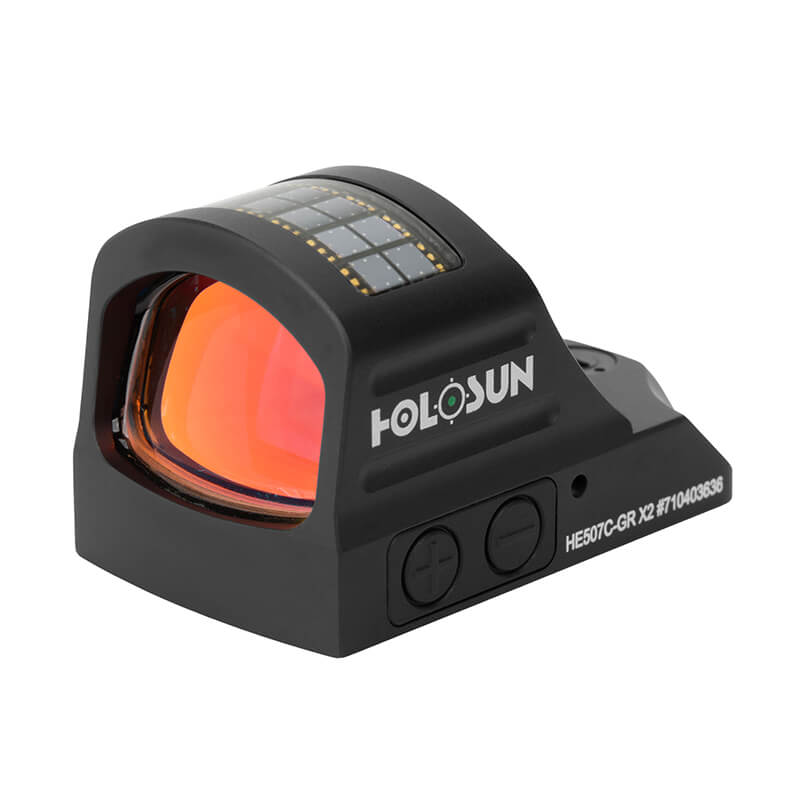

The HE507C-GR is an open reflex optical sight designed for pistol applications. Features include Holosun’s Green Super LED with up to 50k hours battery life, Multi-Reticle System, Solar Failsafe, and Shake Awake.

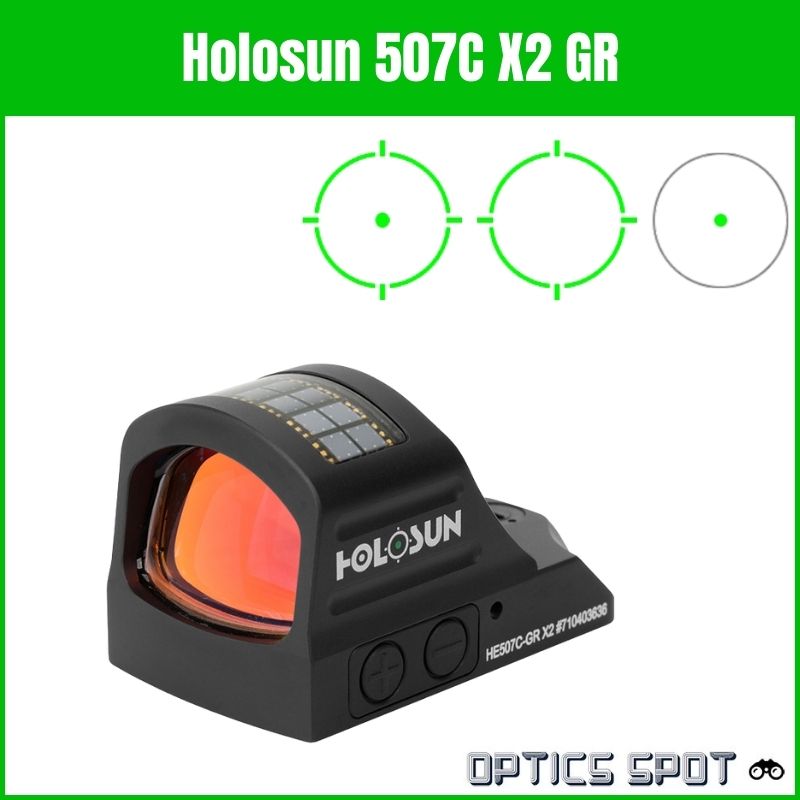

MRS: Circle Dot; 2 MOA Dot; 32 MOA Circle
Super Green LED
Up to a 50,000 Hours Battery Life (Setting 6)
12 Brightness Setting: 10 DL & 2 NV Compatible
Convenient Tray Battery Compartment
Parallax-free & Unlimited Eye Relief

Specification

Optical data

• Reticle: 2 MOA Dot & 32 MOA Circle
• Light Wavelength: 540nm
• Reticle Color: Green
• Parallax Free: Yes
• Unlimited Eye Relief: Yes
• Magnification: 1x
• Multi-Coatings: Yes

Electronic data

• Power Source: Solar & Battery
• Battery Type: CR1632
• Battery Life (Hours): 50000
• Brightness Setting: 10 DL&2 NV

Physical data

• Window Size: 0.63x0.91
• Dimension (in): 1.78x1.15x1.15
• Weight (oz): 1.5

Mechanical data

• Housing Material: 7075 T6 Aluminum
• Surface Finish: Anodize
• Adjustment per Click: 1 MOA
• W&E Travel Range: ±50 MOA

Environment data

• Storage Temperature: -40℃~70℃
• Working Temperature: -30℃~60℃
• Submersion: IP67
• Vibration: 5000G
