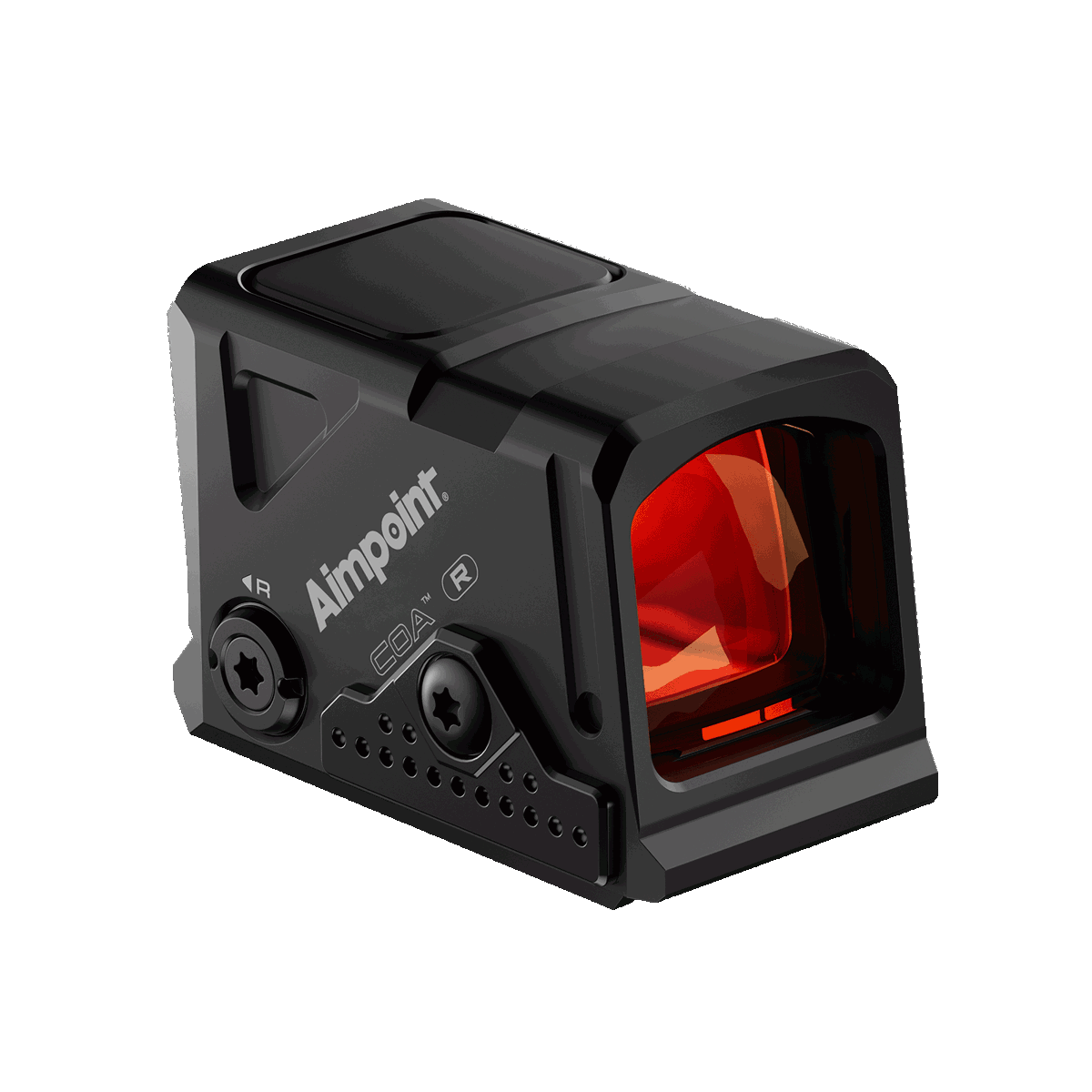

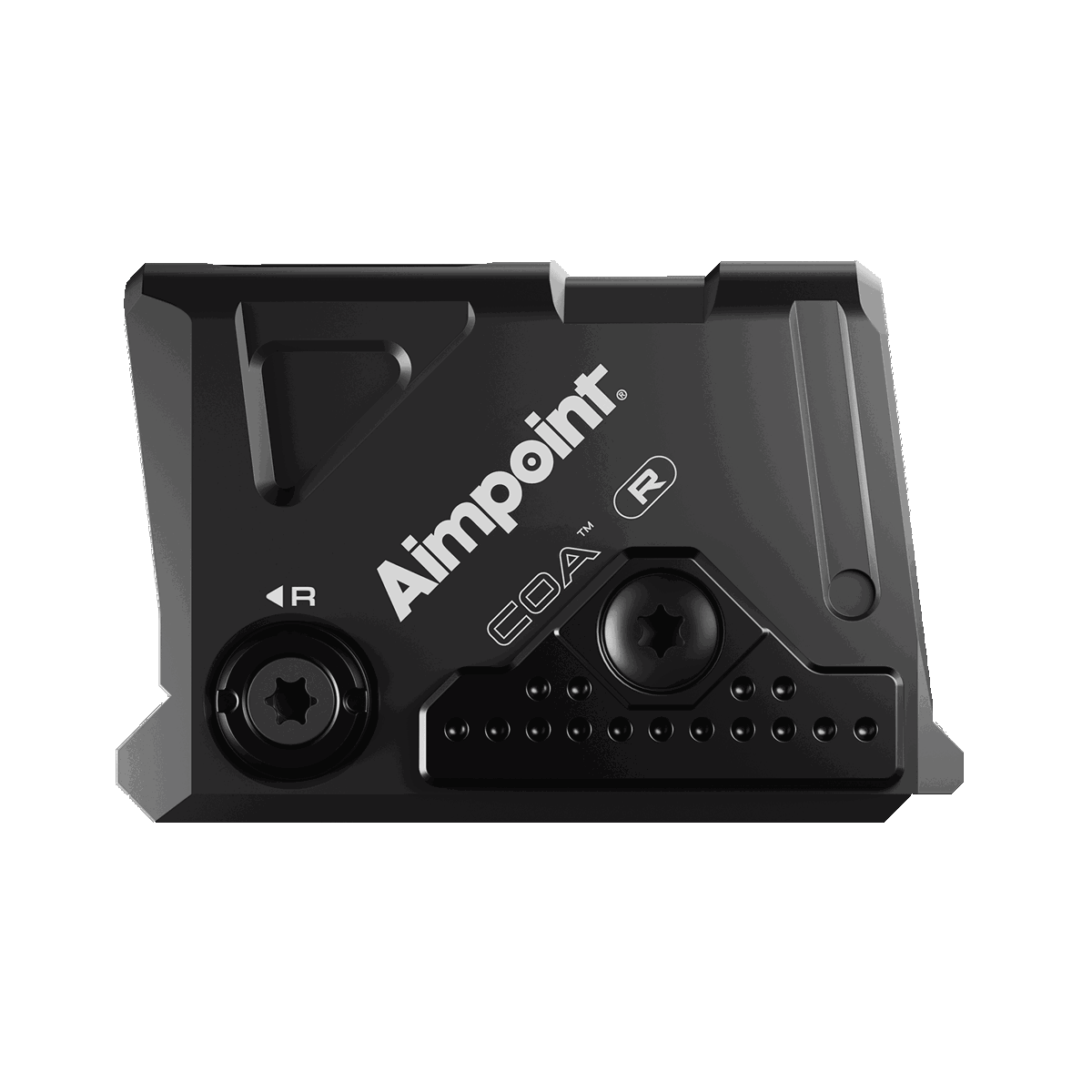

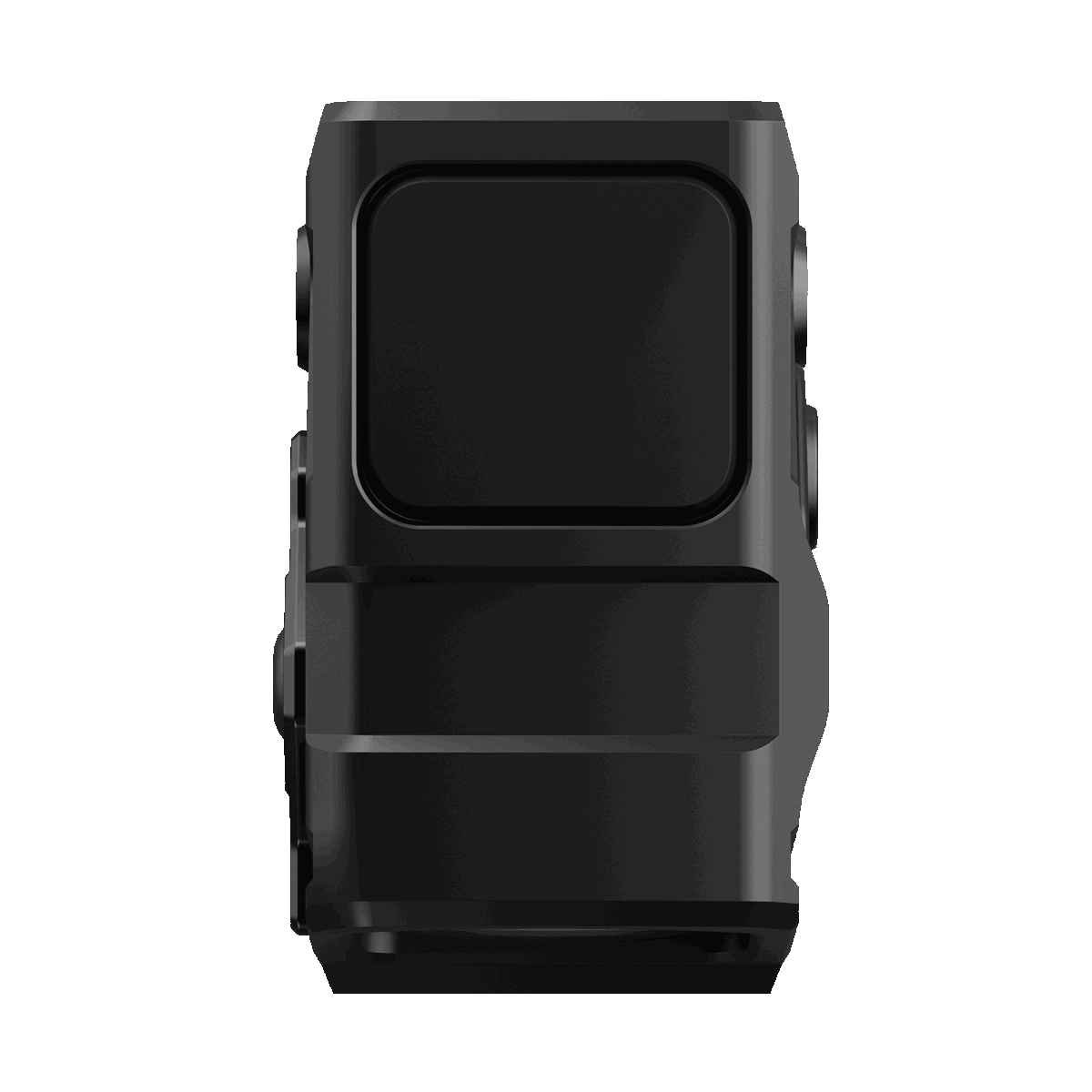

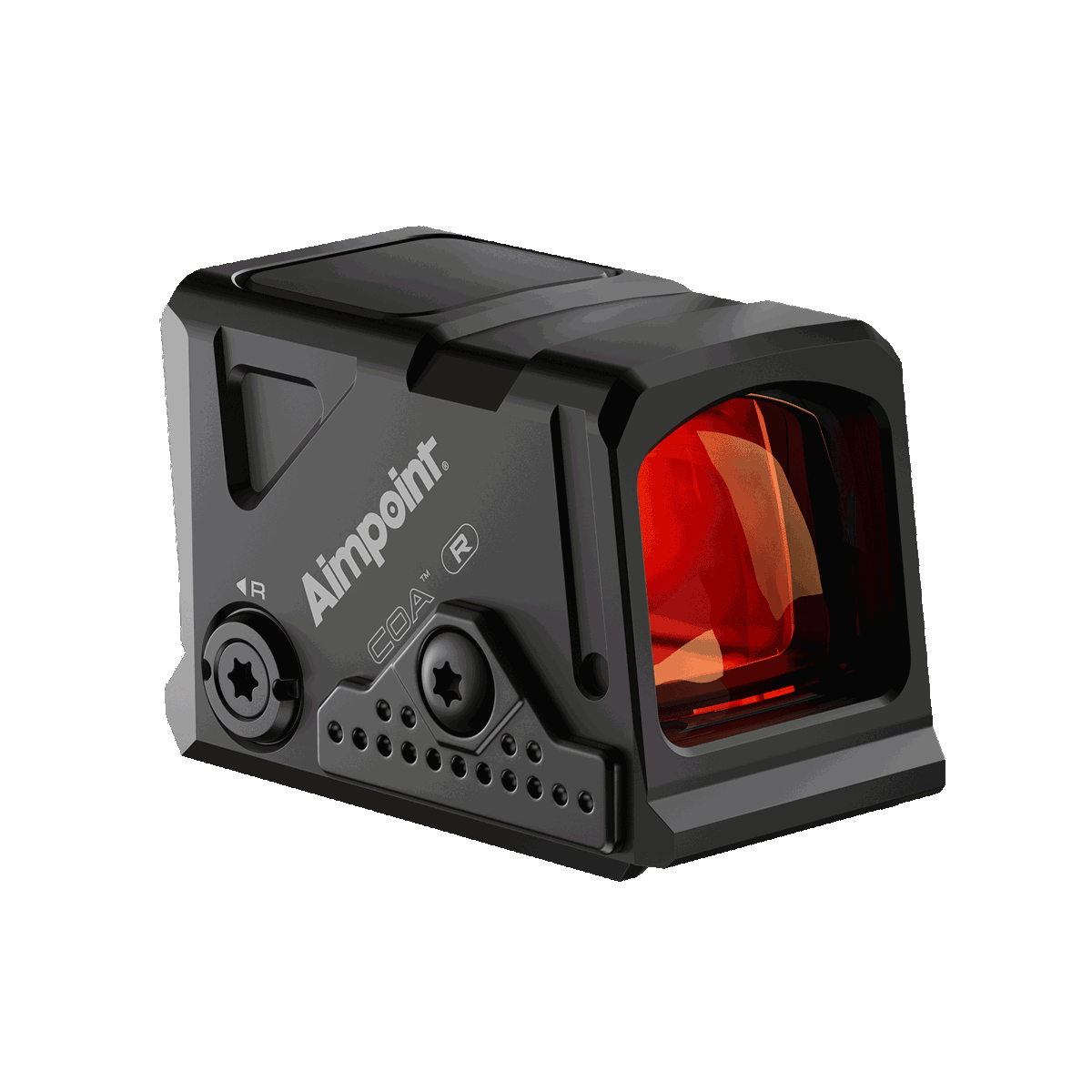

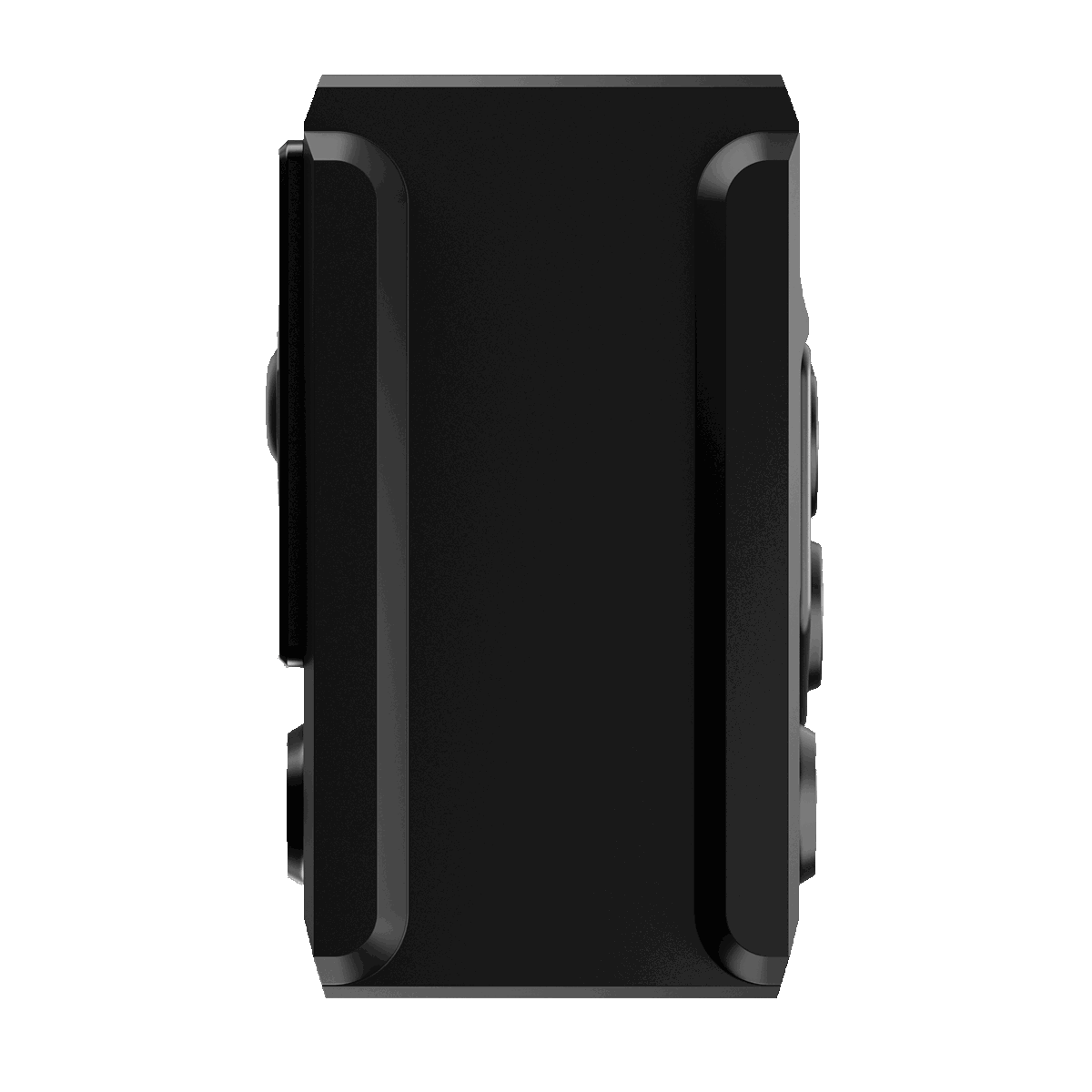

Aimpoint COA R

£634.00 GBP
Tax included Shipping calculated at checkout.
Authorized Aimpoint Dealer Genuine product · Full manufacturer warranty

Full description

This red dot uses the Aimpoint A-CUT footprint standard.

Key specifications

Footprint Aimpoint A-CUT
Reticle 3.5 MOA dot [red]
Total dimensions (L x W x H) 45.0 x 28.0 x 30.0 mm [1.77 x 1.10 x 1.18"]
Battery type CR2032
Battery access Battery changes from the side without removing the optic.

The Aimpoint COA R is a rifle reflex sight that mounts via this interface, using a dedicated rifle mount or an A-CUT-to-MICRO conversion plate for optics already set up for Aimpoint Micro footprints.

  • Tubeless open sight picture with unlimited eye relief and no housing to obstruct the field of view

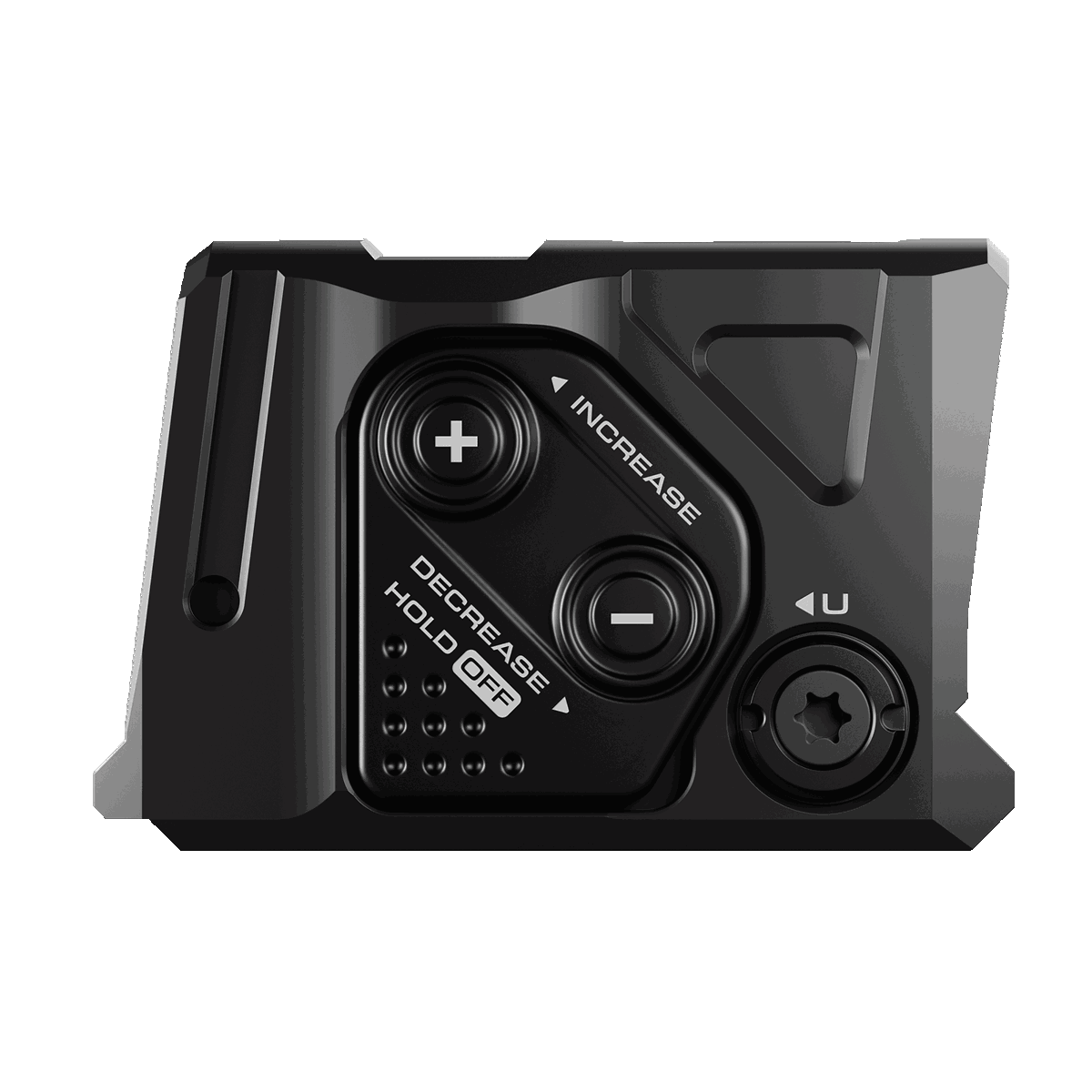

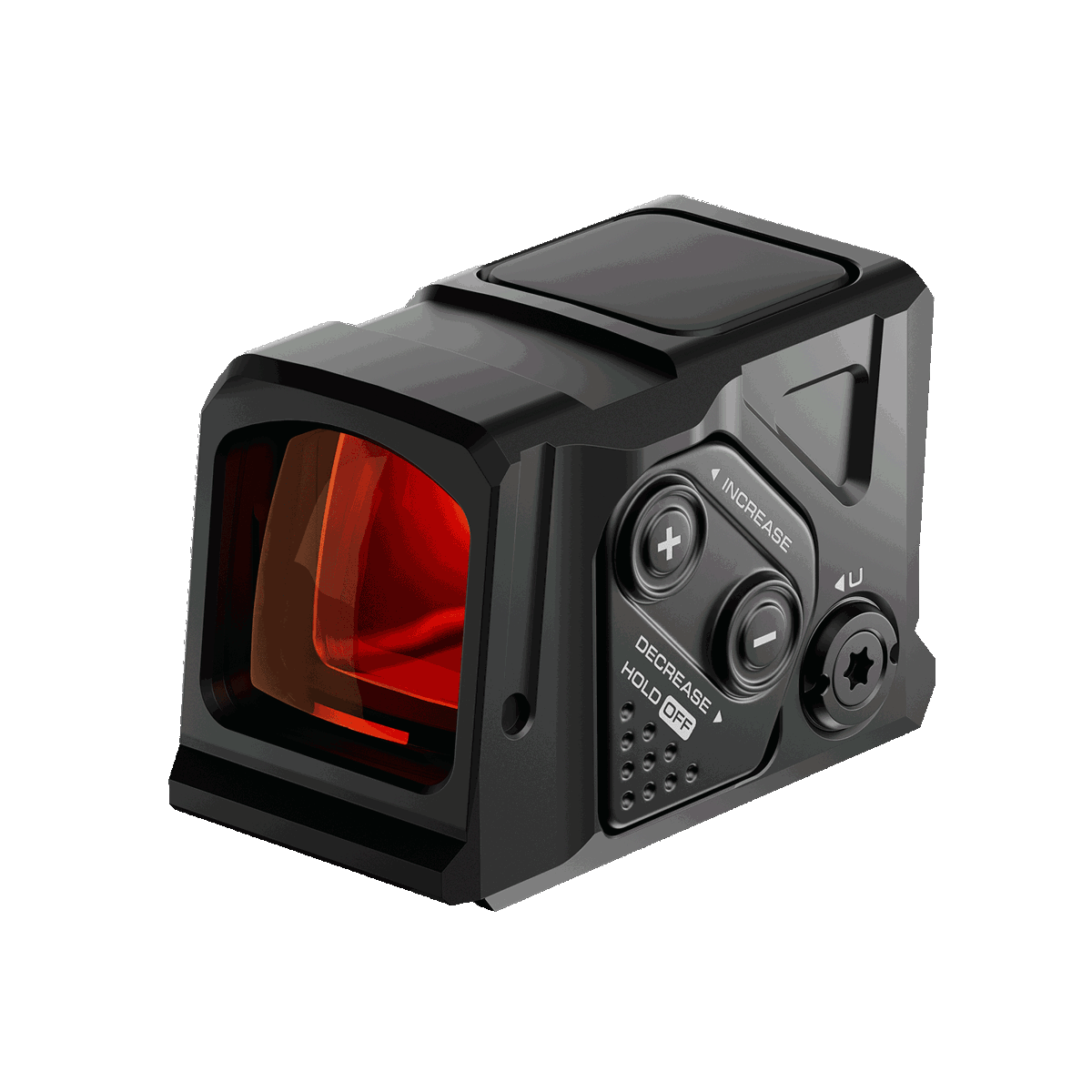

  • 12 brightness settings - 4 night-vision-compatible and 8 daylight-visible
  • Compatible with A-CUT-to-MICRO conversion plates for existing Micro-footprint mounts
  • Fully enclosed optical channel, sealed against dust and debris
Manufacturer Aimpoint
Finish Anodized, semi-matte, matte grey to black
Housing material High-strength aluminium
Magnification 1x [no magnification]
Reticle 3.5 MOA dot, red
Illumination type LED, 650 nm red
Brightness settings 12 [4 night-vision-compatible, 8 daylight]
Eye relief Unlimited
Parallax Parallax free, no centering required
Mounting interface Aimpoint A-CUT (rifle mount / A-CUT-to-MICRO conversion plate)
Battery type CR2032
Battery life Up to 50,000 hours at daylight setting 7 (over 5 years)
Operating temperature -32°C to +60°C [-26°F to +140°F]
Water resistance Submersible to 25 m [80 ft]
Shock resistance Vibration tested, 10-150 Hz range
Weight 48 g [optic only]
Dimensions 45 x 28 x 30 mm [1.77 x 1.1 x 1.18"]
77-200669
