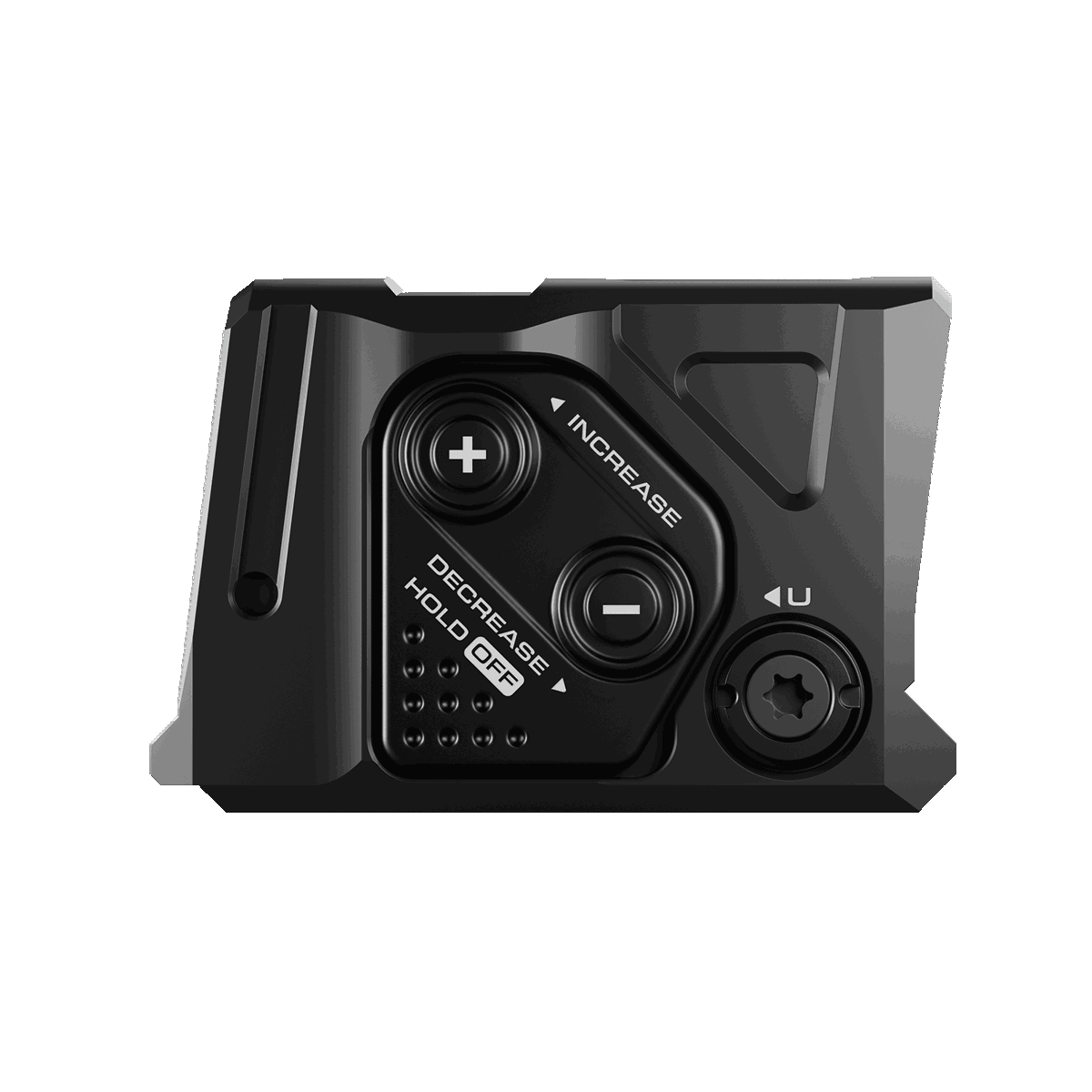

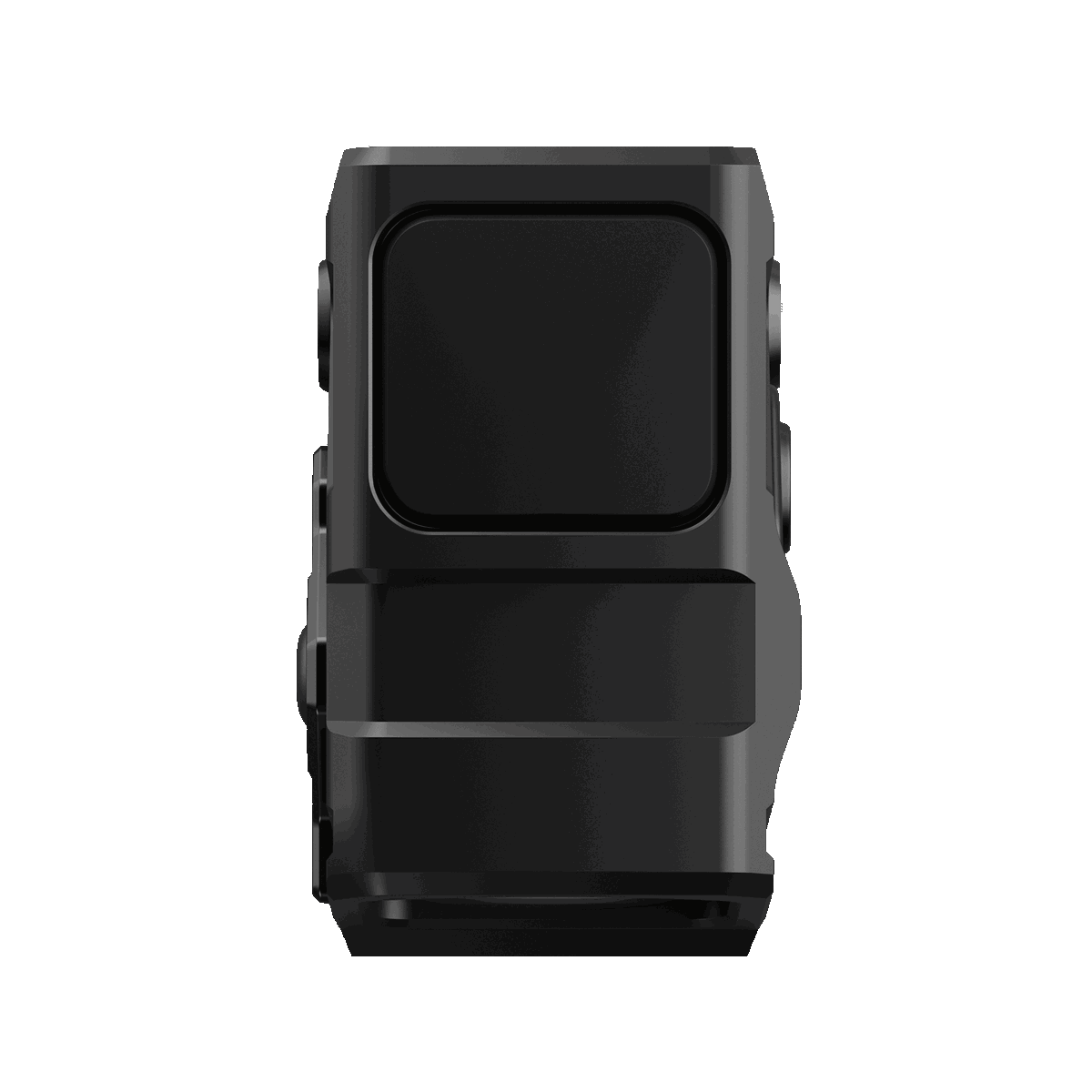

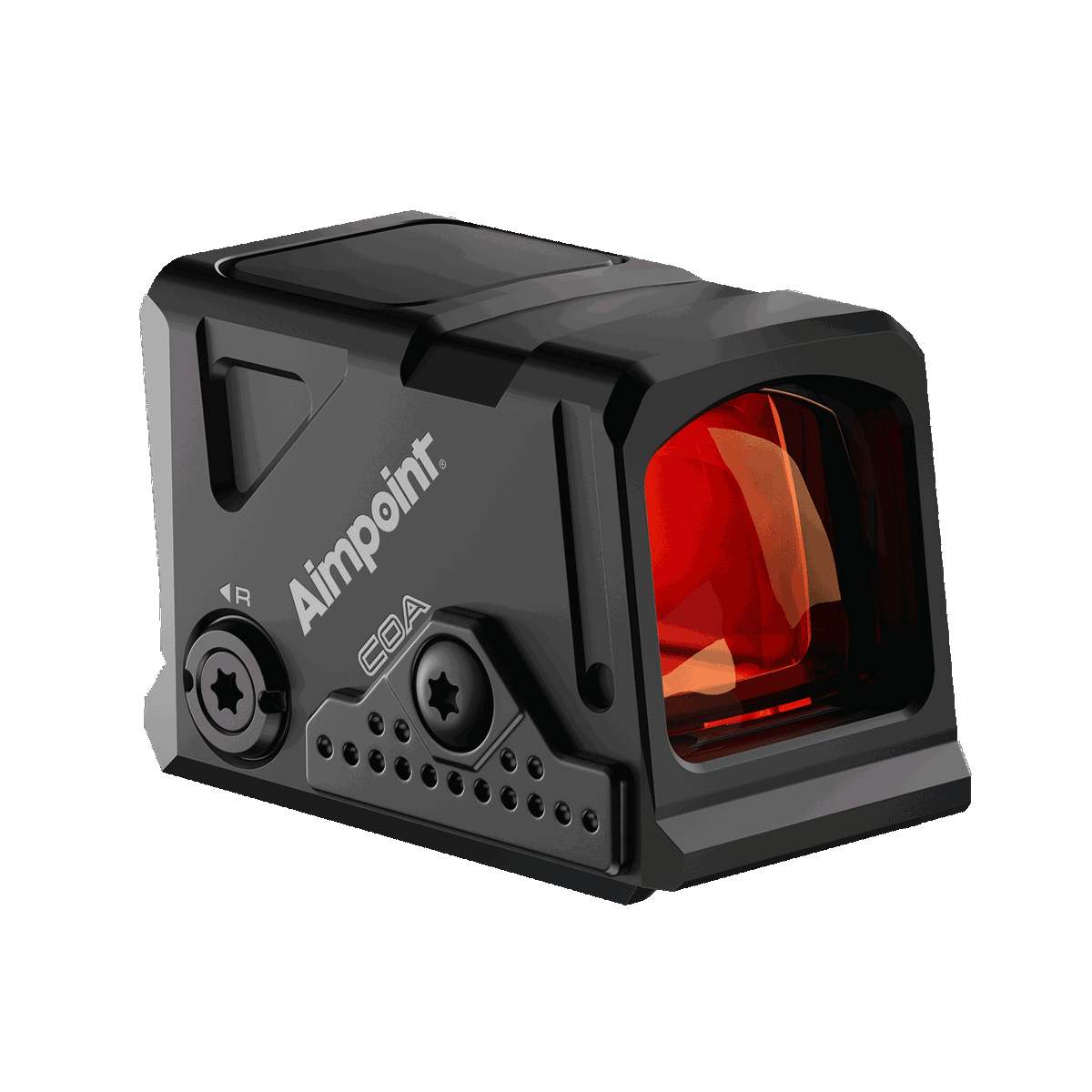

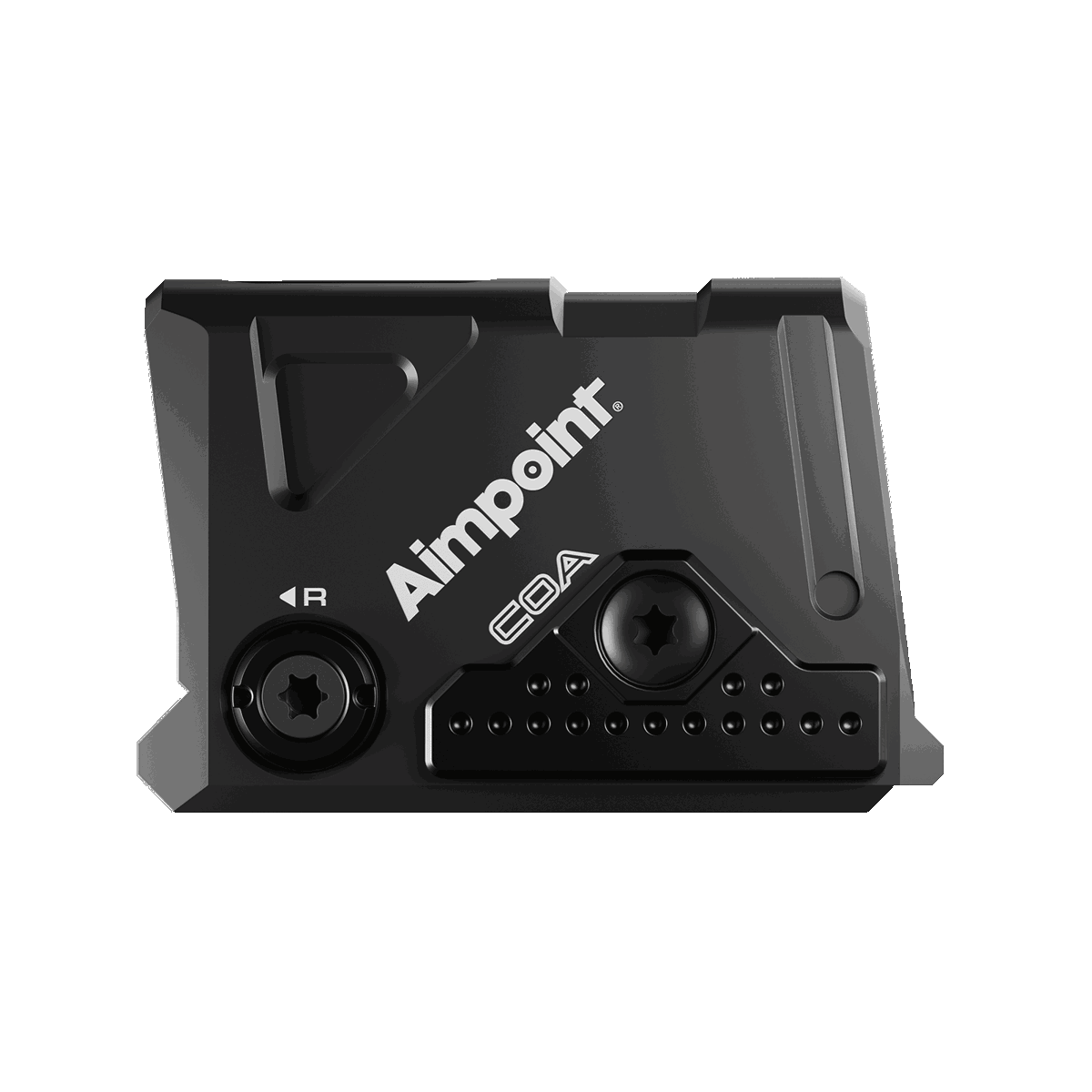

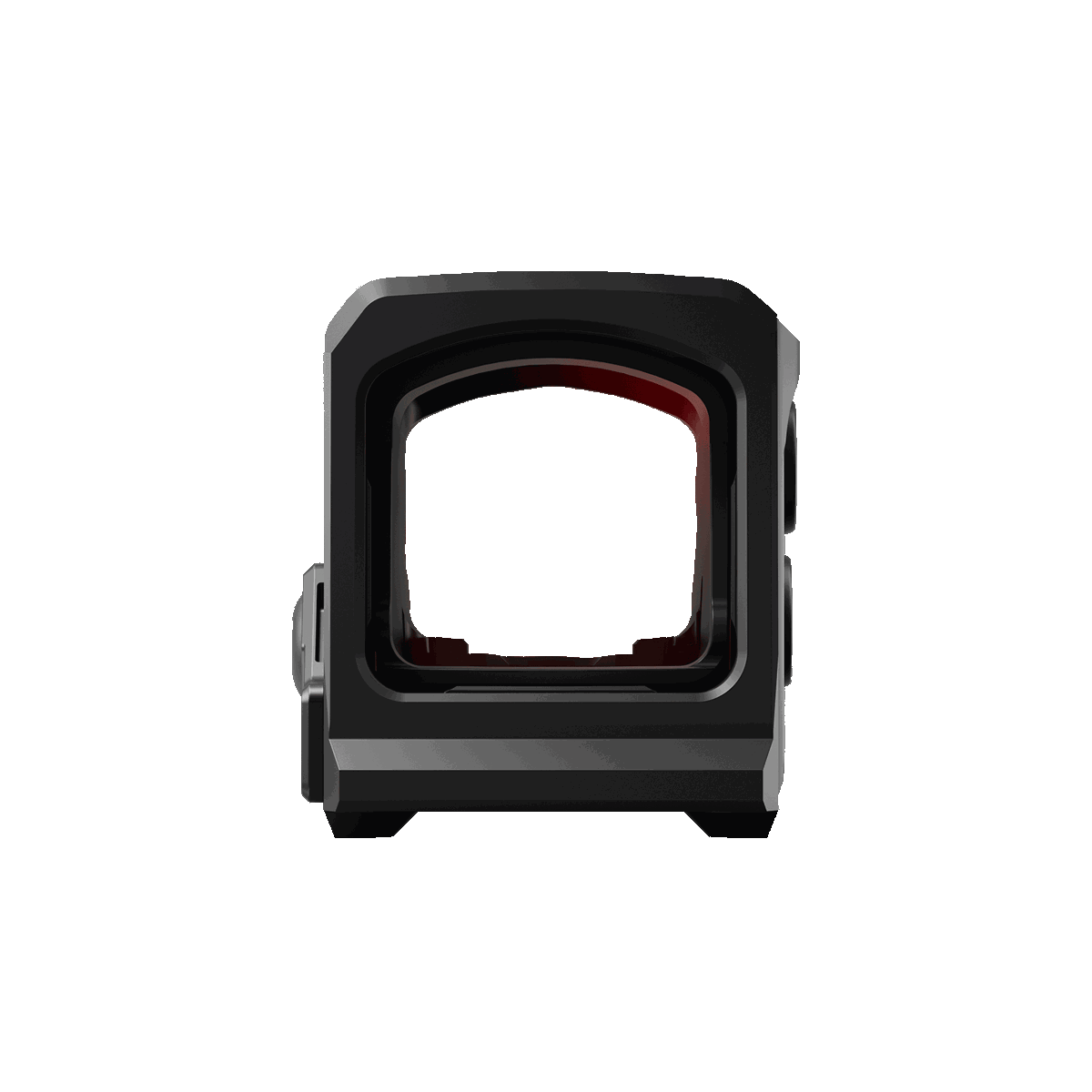

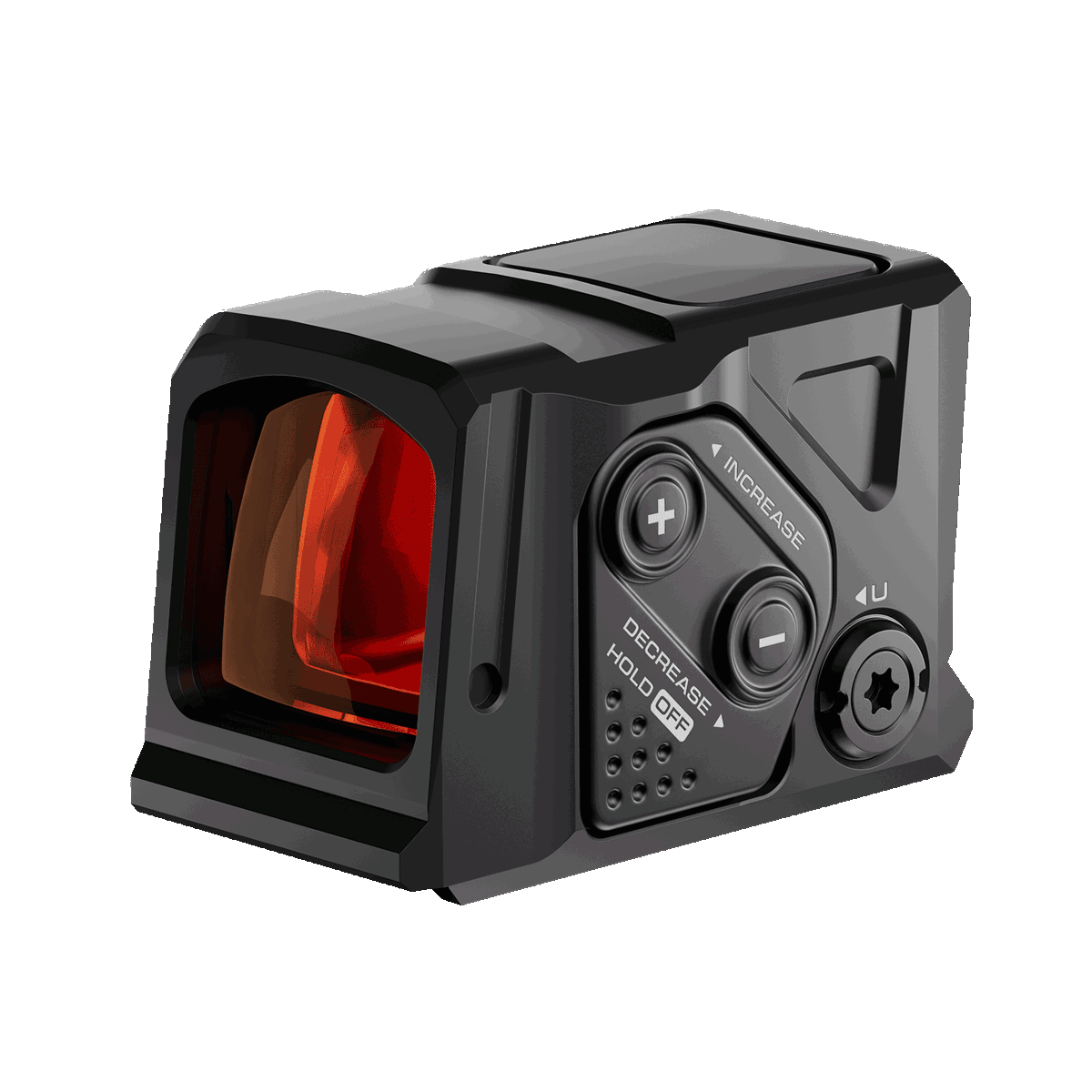

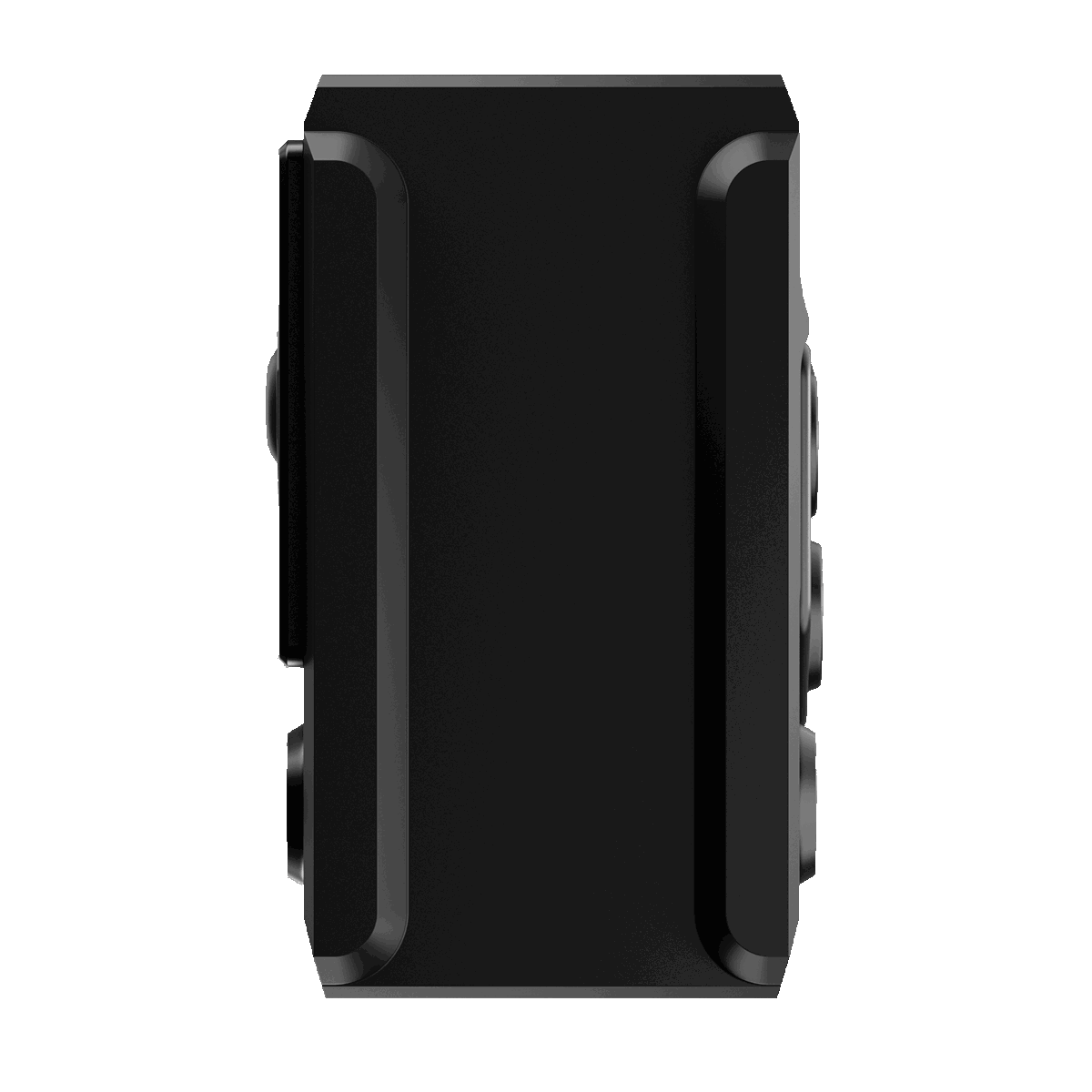

Aimpoint COA

£642.00 GBP
Tax included Shipping calculated at checkout.
Authorized Aimpoint Dealer Genuine product · Full manufacturer warranty

Full description

This red dot uses the Aimpoint A-CUT footprint standard.

Key specifications

Footprint Aimpoint A-CUT
Reticle 3.5 MOA dot [red]
Window size (H x W) 15.0 x 15.0 mm [0.59 x 0.59"]
Total dimensions (L x W x H) 45.0 x 28.0 x 30.0 mm [1.77 x 1.10 x 1.18"]
Battery type CR2032
Battery access Battery changes from the bottom without removing the optic.

The Aimpoint COA is a slide-mounted pistol reflex sight that mounts via this integrated interface, machined directly into the slide with no screws through the optic housing.

  • Tubeless open sight picture for fast, both-eyes-open target acquisition, with unlimited eye relief
  • 12 brightness settings - 4 night-vision-compatible and 8 daylight-visible - adjustable without removing the optic from the slide
  • Co-witness capable with suitable iron sights
  • Tested to withstand the recoil of 40,000 rounds of 9mm, mounted on a Glock 45 slide
  • Fully enclosed optical channel, sealed against dust and debris
Manufacturer Aimpoint
Finish Anodized, semi-matte, matte grey to black
Housing material 7075-T6 aluminium
Magnification 1x [no magnification]
Reticle 3.5 MOA dot, red
Illumination type LED, 650 nm red
Brightness settings 12 [4 night-vision-compatible, 8 daylight]
Eye relief Unlimited
Parallax Parallax free, no centering required
Mounting interface Aimpoint A-CUT
Battery type CR2032
Battery life Up to 50,000 hours (over 5 years)
Operating temperature -45°C to +73°C [-49°F to +163°F]
Water resistance Submersible to 25 m [80 ft]
Shock resistance Tested to 40,000 rounds of 9mm recoil; MIL-STD-810G vibration tested
Weight 48 g [1.69 oz]
Dimensions 45 x 28 x 30 mm [1.77 x 1.1 x 1.18"]
Window size 15 x 15 mm [0.59 x 0.59"]
77-200489
